Cleanroom Troffer & Panel Light
Recessed plaster troffer designed to suit the unique demands of operating theatre and cleanroom environments
Cleanroom Troffer for the Sterile Chambe Designed by OLAMLED

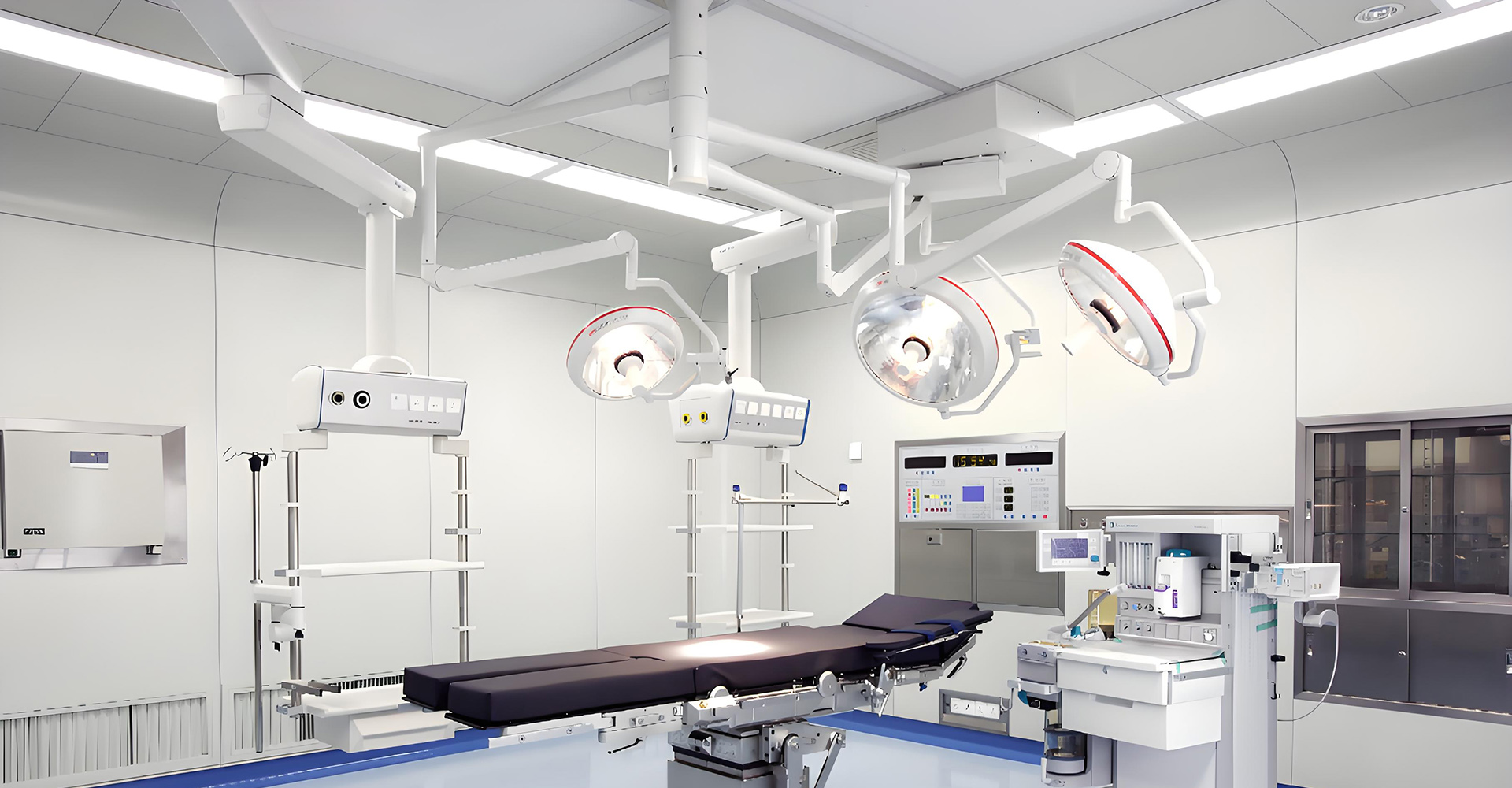

- Cleanroom panel light is an IP65 plaster recessed troffer designed with the latest LED technology and is a purpose-built product suited to operating theatres.
- Cleanroom applications and modern healthcare facilities with excellent color rendering and efficiency.

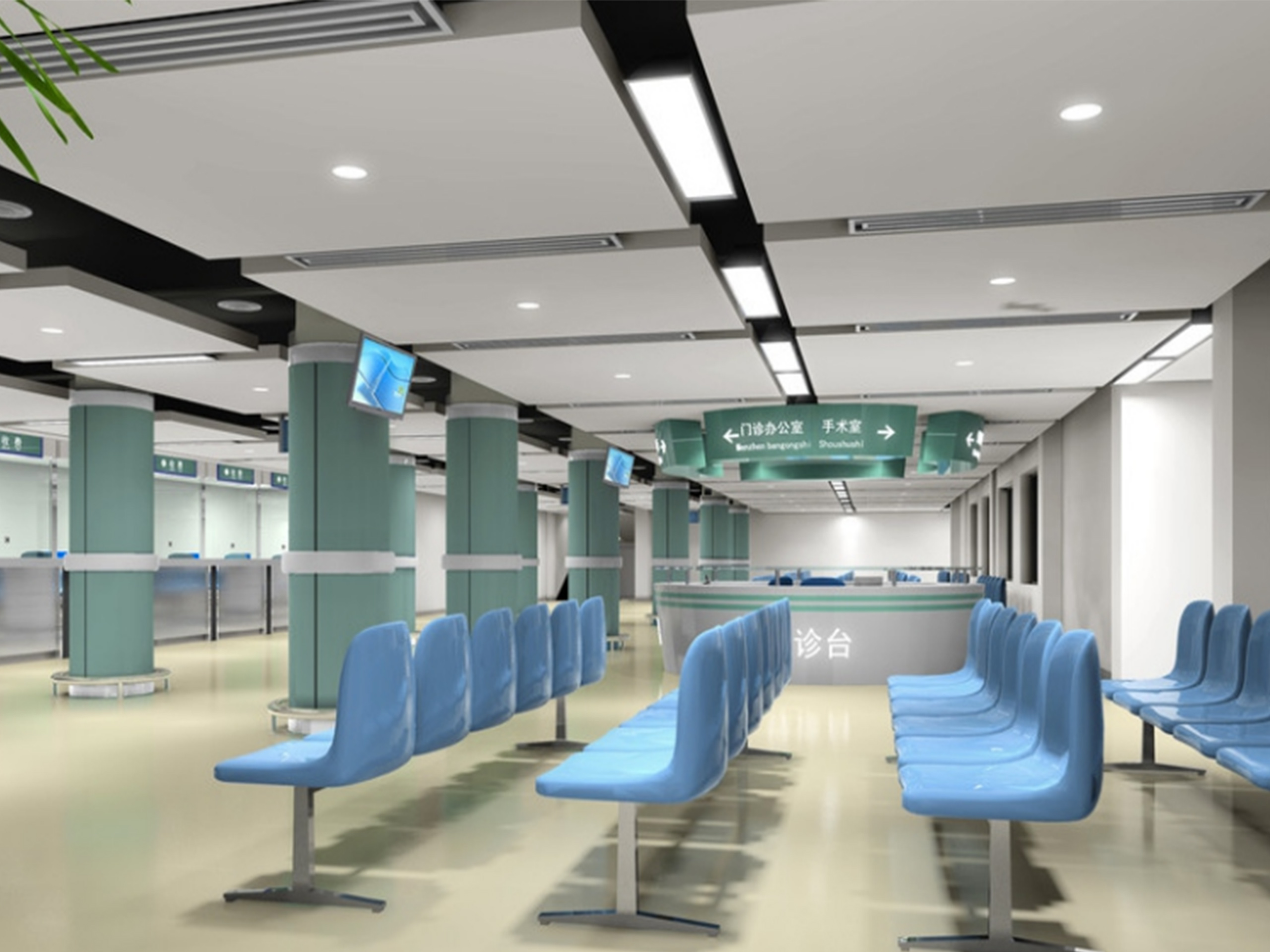

- Low glare comfort is the perfect lighting solution for medical and hygienic environments with a plaster recess mount

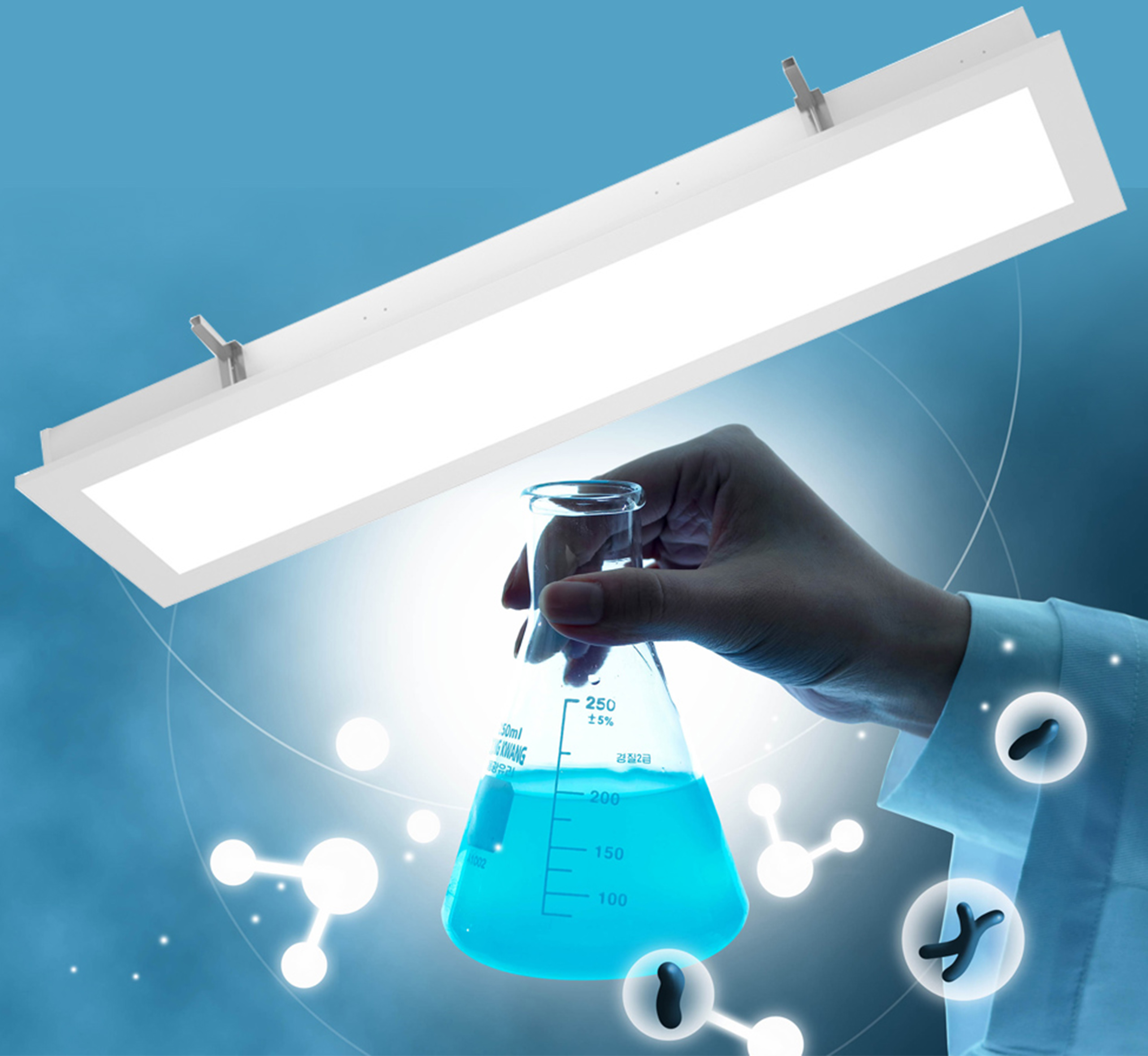

The Anti-bacterial Coating Technology Panel Light is Suitable for Aseptic Rooms
- Anti-microbial coating providing long lasting infection control and resistance to bacterial contamination available
- Every component has been meticulously crafted to withstand the rigorous demands of specialized environments. With this state-of-the-art coating, areas prone to bacterial accumulation are shielded, dramatically reducing the risk of microbial growth on the panel’s surface.
- The technology doesn’t just temporarily deter bacteria; it offers a sustained defense, ensuring a consistent barrier against potential contaminants.

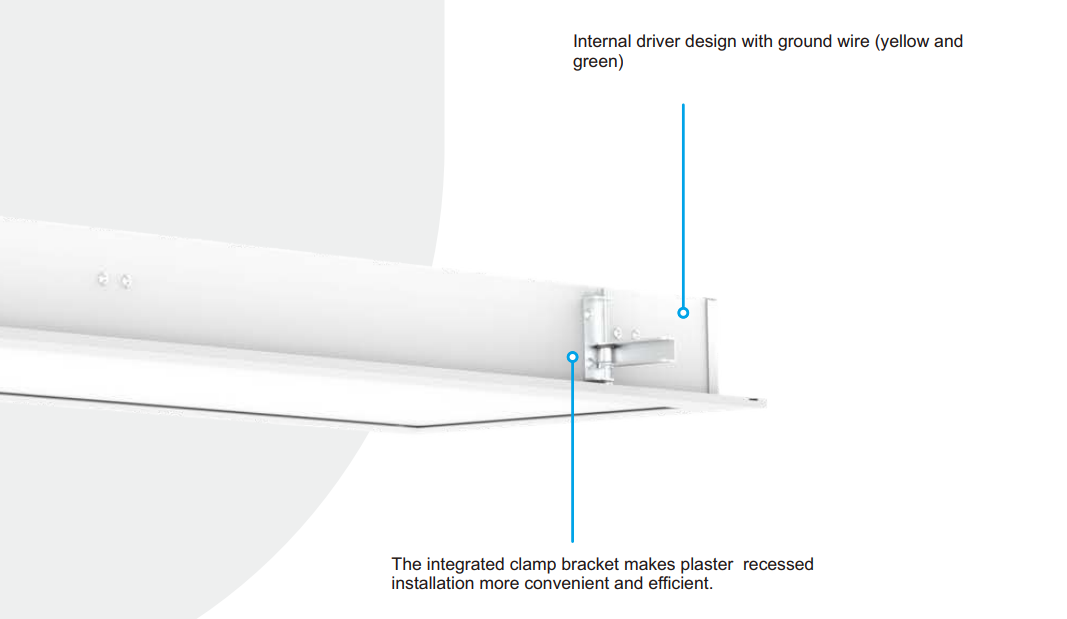

LED Cleanroom Lighting Designed to Suit Plaster Recessed Installation
flip-out clamp brackets ensure mounting is simple and efficient.
Easy to install lamps designed for those complex gypsum recessed ceilings. Recognizing the challenges that can arise with plaster installation, our engineers have carefully designed easy-to-use trigger fixture luminaires.
The brackets have been innovatively designed to not only ensure comfortable installation in the recesses, but also to simplify the installation process. Quick flipping, clamping and safety mechanisms mean less time to adjust the installation

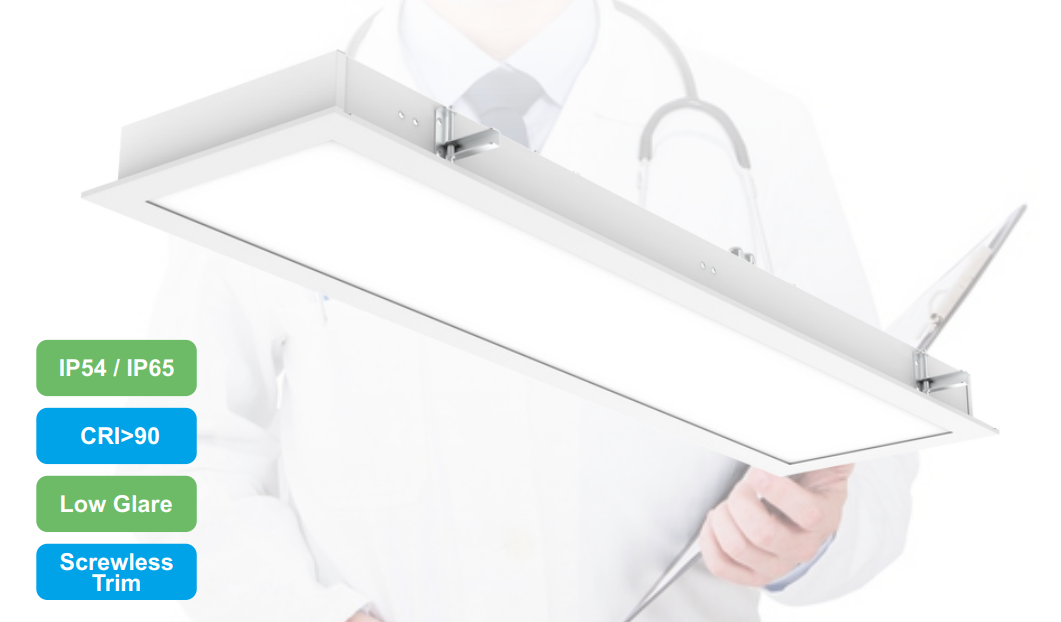

Highlight Features of Cleanroom Troffer & Panel Light
- High grade welded steel body
- Flip-out clamp brackets
- Lightweight design
- Sealed IP54/IP65 construction with screwless trim
- CRI 90, SDCM < 3, 4000K as standard
- 100lm/w efficacy
- Low glare LED optimised diffuser
- Internal driver, flicker free, on/off, DALI dimmable
- IK02/IK08
The technical parameters of the products can be customized according to the engineering needs of customers, and our engineering team will provide you with professional solutions
Different Standard Definitions and Interpretations of IPxx and IKxx
For this product series, we provide different standards, mainly according to the needs of customers to match, but we need to explain the definition of different standards to you, to help you better choose what you need.
- IP54: The IP (Ingress Protection) rating system is an internationally recognized scale that relates to the sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt, etc.) and moisture. The rating “IP54” can be broken down into two parts: 1) The first digit, “5,” indicates protection against limited dust ingress (no harmful deposit) and complete protection against contact. 2)The second digit, “4,” signifies protection against water splashes from any direction, ensuring limited ingress with harmful effects.
- IP65: The rating “IP65” stands for: The first digit, “6,” signifies total protection against dust ingress, indicating it’s dust-tight. The second digit, “5,” indicates protection against low-pressure water jets from any direction, ensuring limited ingress with harmful effects.
- IK02: The IK code represents a product’s resistance to mechanical impacts. “IK02” denotes a protection level against 0.2 joules impact. Essentially, it means that the product can withstand an impact energy equivalent to 0.2 joules without any damaging consequences.
- IK08: Similarly, “IK08” signifies a protection level against 5 joules impact, representing a much higher resistance to mechanical impacts compared to IK02. It can withstand an impact energy equivalent to 5 joules without sustaining damage.
Custom Solution for Cleanroom LED Lighting
Not only producing LED Lighting products, but also providing solutions for your specific needs.
Customizable Size
Depending on the client’s different requirements, we can provide specified specifications and product improvement services. Meanwhile, You would enjoy simple and high production efficiency from our R&D team.
CCT and CRI of LEDs
The color temperature and CRI(color rendering index): We can provide different color temperature from 2700-6500K, and the CRI(CRI>80Ra,90Ra, 95Ra) according to your purpose and scene, SDCM<3 or 5, allowing you to enjoy the most suitable lighting color and texture.
LED Driver With Different Functions
We can provide LED driver solutions with different functions according to project requirements, such as: on/off, 0-10V dimming, DALI dimming and Tunable white, all power supplies comply with safety certification and no strobe, high conversion efficiency, high PF solution, in line with environmental protection and energy efficiency standards requirements, allowing you to flexibly adjust the lighting brightness and atmosphere
Packaging & Logo & Manual Design
We can supply small batch instructions, labels, packaging design and printing for your order, regardless of size. We have an experienced team of designers and printers who can create attractive and informative materials for your products. Whether you need simple or complex design, color or monochrome printing, smooth or matte finish, OLAM can meet your expectations and requirements. always use high quality materials and advanced equipment to ensure the durability and clarity of our products and provide fast delivery and competitive prices.
Our Ability to Accomplish What We Said Above
Quick Response
With an engineering design and development team with over 17 years of industry experience, we can provide you with:
- 1 day to provide DIALUX simulation
- 2 days to produce 2D/3D drawings
- 3-5 days for prototype
- Small batch customization

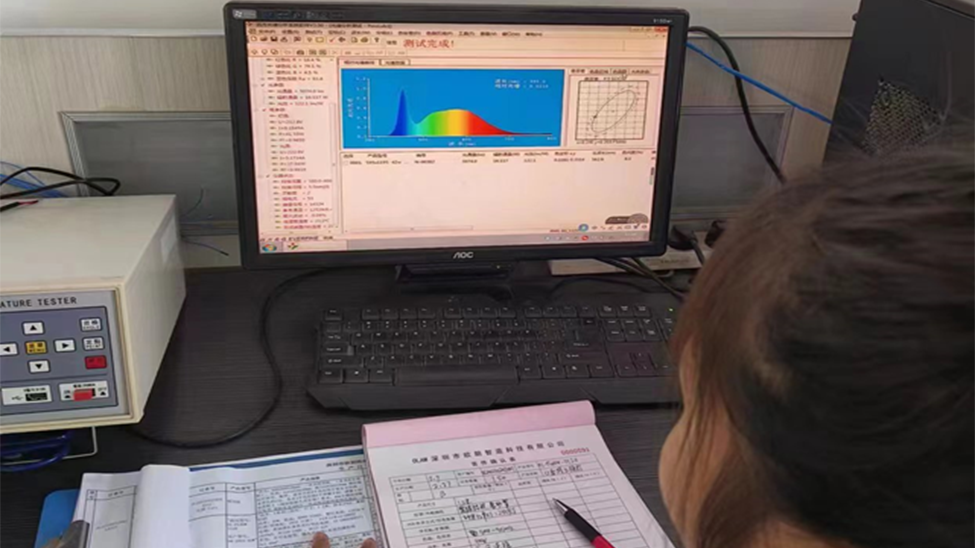

Production Control
With our own production and quality control team, we can not only quickly and efficiently arrange the production schedule to meet your order delivery but also protect your order from raw materials to production process and shipping inspection.
Powerful Supply Chain
With 14 years of development, OLAMLED has its own perfect supply chain system. OLAMLED has very mature and stable suppliers to control the quality, price and service of material suppliers, which can provide customers with main effect and customized services.
Professional Service Capability
We have a team of over 14 years of foreign trade export services, serving more than 100 countries, we can provide professional solutions for different countries' import and export and product specification requirements and product certification consulting solutions
