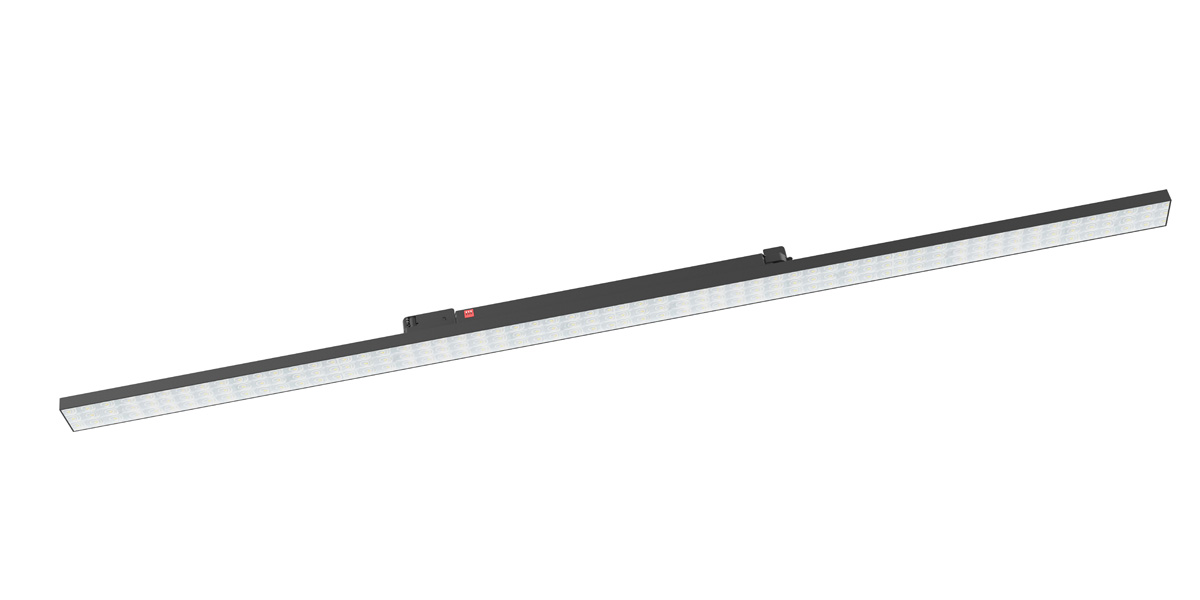

LED Track Linear Light(>160lm/W )
TK02 Series
Linear track lights is defined as lamps with a linear shape
Track linear lighting consists of a series of lights that run on a certain track structure. With universal track adapter, it can match existing European 3-circuit track rail brands, such as Eutrac, Global and Staff.
- High luminous intensity, up to 160LM/W
- Adopt PMMA efficient lens, lower decay and high UV tolerance
- Unique aluminum housing(6063-T5) with good heat dissipation
- Aluminpcb(PCB) with high thermal conductivity and thermal resistance.
- Widely used in shopping malls, supermarkets, warehouses and brand chain stores
Fully compatible with traditional track systems
- Up to 160lm/W
- Color: Black / White
- Selectable Wattage
- Track adapter: POWERGEAR 3-Circuit
- Different Length with different power
- Length: 1152mm and 1442mm for option
- Beam angle: 60º/90º/DS20º(Double Asymmetric）
- Driver: On/Off, DALI and 1-10V dimming optional
Complete Track Linear Light
Complete linear track kits (consisting of adjustable track light heads, and canopy) are accessible. It can not only be installed in a fixed position but also be moved flexibly. You can turn them to wherever you want and add extra lamps.
Innovative design on optics
Three new beam angles can be perfectly used in different areas.
- 60° for focusing on the special area
- 90° for wider luminous surface
- 20° double asymmetric for two sides of the shelf
Wattage Selectable
Choose the length according to the size of the space, 1152mm and 1442mm are provided.
- Wattage dipswitch: 1152mm: 30/35/40/45W
- 1442mm: 35/40/50/55W
CRI: >80Ra/90Ra
Easy to Install
Installation type:
- Mounted on rail system
- Suspension
- Recessed
Track installation is the most common:
- Turn two shafts around 90°as drawing shown to lock the adaptor in the track
- Adjust the circuit “ OFF>1>2>3>OFF “
- Completed adjustment and installation
Specs
| Technical Parameters |
|
| Model | OL-TK02-30W |
| Power | 30W |
| Luminous flux | 4800lm 160lm/W |
| Dimension | L1152*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.95 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-40W |
| Power | 40W |
| Luminous flux | 6400lm 160lm/W |
| Dimension | L1152*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.95 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-50W |
| Power | 50W |
| Luminous flux | 8000lm 160lm/W |
| Dimension | L1152*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.95 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-45WD |
| Power | 45W(Swith To 30W 35W 40W 45W) |
| Luminous flux | 4800-7200lm 160lm/W |
| Dimension | L1152*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.95 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-30W |
| Power | 30W |
| Luminous flux | 4800lm 160lm/W |
| Dimension | L1152*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.95 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-40W |
| Power | 40W |
| Luminous flux | 6400lm 160lm/W |
| Dimension | L1152*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.95 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-50W |
| Power | 50W |
| Luminous flux | 8000lm 160lm/W |
| Dimension | L1152*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.95 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-45WD |
| Power | 45W(Swith To 30W 35W 40W 45W) |
| Luminous flux | 4800-7200lm 160lm/W |
| Dimension | L1152*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.95 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-35W |
| Power | 35W |
| Luminous flux | 5600lm 160lm/W |
| Dimension | L1442*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.9 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-45W |
| Power | 45W |
| Luminous flux | 7200lm 160lm/W |
| Dimension | L1442*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.9 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-55W |
| Power | 55W |
| Luminous flux | 8800lm 160lm/W |
| Dimension | L1442*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.9 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-55WD |
| Power | 55W(Swith To 40W 45W 50W 55W) |
| Luminous flux | 6400-8800lm 160lm/W |
| Dimension | L1442*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.9 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-35W |
| Power | 35W |
| Luminous flux | 5600lm 160lm/W |
| Dimension | L1442*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.9 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-45W |
| Power | 45W |
| Luminous flux | 7200lm 160lm/W |
| Dimension | L1442*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.9 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-55W |
| Power | 55W |
| Luminous flux | 8800lm 160lm/W |
| Dimension | L1442*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.9 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60°/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
| Technical Parameters |
|
| Model | OL-TK02-55WD |
| Power | 55W(Swith To 40W 45W 50W 55W) |
| Luminous flux | 6400-8800lm 160lm/W |
| Dimension | L1442*W65mm |
| Input Voltage | AC220-240V |
| Power factor ( P.F. ) | >0.9 |
| LED source | SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Black / White |
| Track Adapter Type | POWERGEAR 3-Circuit Adaptor |
| Index of protection | IP44 |
| Beam angle | 60°/90° |
| Housing material | Aluminum 6063+PMMA Lens Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 5 years |
BENEFITS OF TRACK LINEAR LIGHTING
Aside from stylish appearance, high brightness and long lifespan, LED Track Linear Light can also enhance the aesthetic of a shop.
It provides a perfect ceiling light solution for commercial offices, art galleries and supermarkets.
FAQ of LED Track Linear Light
Yes. For 1152mm, the standard models are 30W, 35W, 40W and 45W. And for 1442mm, the standard models are 35W, 40W, 50W and 55W.
White and black for option. but we can also use the color customers mentioned.
SMD2835. The brand is Liumileds.(80 and 90Ra for option)
The standard brand is PHILIPS. Other drivers are also available, such as Lifud, BOKE, Tridonic, OSRAM etc.
