Customized Lighting Solution

Are you considering how to get the suitable LED Lights to meet your current project? Maybe you are in the right place now. Whether it is a customized fixture, a special dimension or different demand, we are here to help. OLAM supports the project from the initial design to the final solution.

Ø70mm LED Tubular Light

  • Inox 304L and 316L for all external metal features
  • PC or PMMA Shell to certify the resistance of the luminaire in high chemical, corrosive and abrasive situations
  • Shock resistance: PC Housing resisting IK10 mechanical impacts. Resistant to thermal and mechanical impacts even at very low temperature
  • Integrated shell principle, absorb thermal expansion and mechanical stress
  • A powerful power supply designed for intensive operation at low temperatures
  • Designed to meet the hygienic requirements of the food industry
  • Absolutely durable and impermeable IP67/IP69K
  • No frost formation
  • High resistance to chemical detergents due to co-extrusion Polycarbonate and methacrylate shells
Edge Lit UGR19 Panel Light CASE

Edge-lit UGR<19 Panel Light

In the case of OLAM panel light, the edge-lit light structure was used to solve the customer’s important problem of light softness and dazzling light, which was a challenging experience. Take a closer look at how we analyze the needs of our customers, how can we help reduce light damage to the eyes, save energy and protect the environment while improving their overall office image

IP69K IP67 Tubular Light

Our lighting fixtures solution for some special areas combines lighting comfort with exceptional durability thanks to its construction principle and specific enough components. Stainless steel and PC product body with IP67 waterproof structure is perfect for placing in harsh environment, you can choose the right product depending on the operating environment, your installation and use restrictions, our team can provide you with professional support.

IP69K IP67 Tubular Light CASE
UGR16 LED Modular Light CASE

UGR<16 LED Panel Light

Modernizing the home or office with LED panel lights in place of old fluorescent ceiling lights is an easy and fast way to save on energy. Plus, the larger panels will provide a brighter environment and cut back on the time needed for regular maintenance.

UGR Modules panels lights make it possible to benefit from a point-like light source. This makes it possible for designers to create a kitchen or office layout that takes full adventure of the effects and shapes produced by the lights.

Modular design, The light source and power supply easy to replace more in line with the concept of environmental protection, energy saving and resource reuse

IP69K IP67 Tubular Light

Our lighting fixtures solution for some special areas combines lighting comfort with exceptional durability thanks to its construction principle and specific enough components. Stainless steel and PC product body with IP67 waterproof structure is perfect for placing in harsh environment, you can choose the right product depending on the operating environment, your installation and use restrictions, our team can provide you with professional support.

IP69K IP67 Tubular Light CASE

Choose from a wide range of LED Tubular Light

K80一级主图

K80

With a diameter of 80mm, it is the most popular diameter product with the highest usage in the market at present.It's also Top sales of all of tubular light series

K70

K70

The diameter is 70mm. In different engineering cases in Europe, not all customers like and accept the diameter of 80mm, mainly to meet the different engineering needs of customers

K45一级主图 3

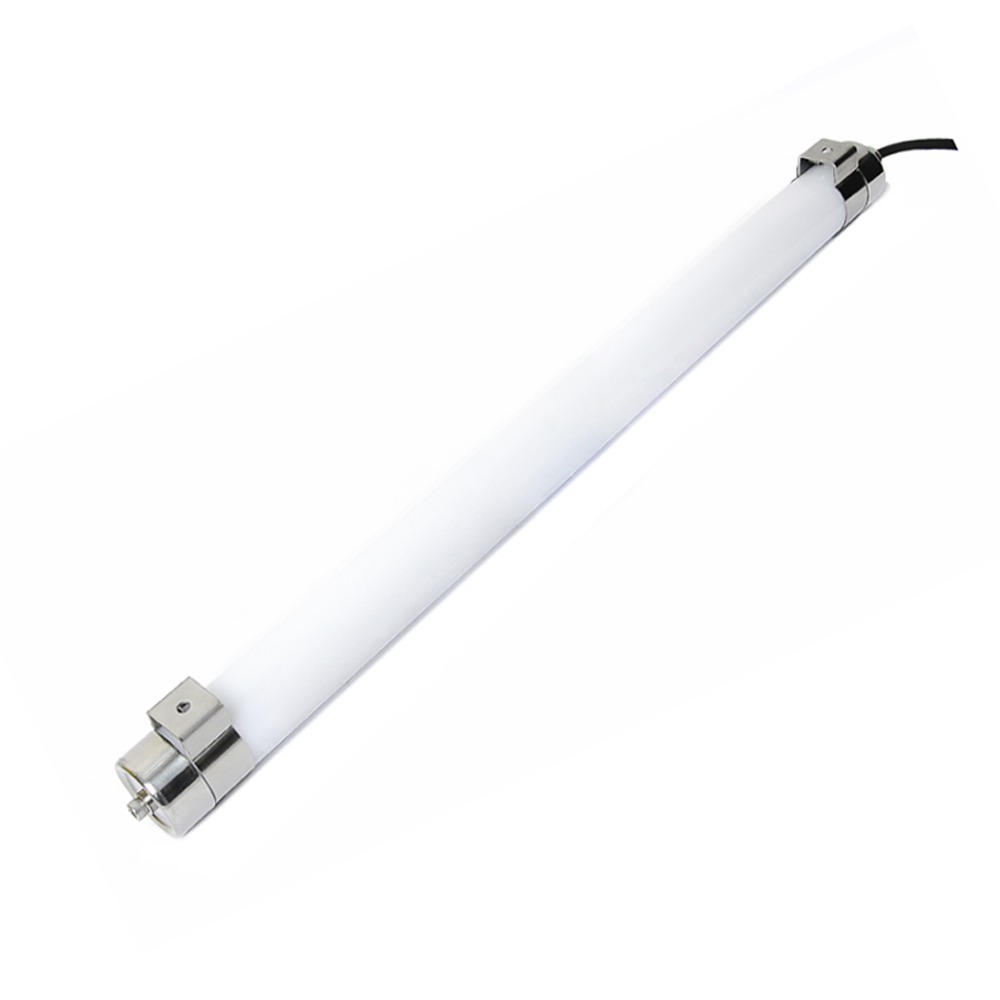

K45

The diameter is 45mm, Smaller than K80 and K70, Good for use in small area of decoration and outdoor advertising box

K3

K3

K3 series is mainly the product light body design special, increase low glare reflection cup, reduce product glare, protect eyes, suitable for some special places staff use

TD installation

Easy to Install

Installation Mod:

  • Track on the trunking system
  • Suspension
  • Recessed

Track installation is the most common:

  • Turn two shafts around 90°as drawing shown to lock the adaptor in the track
  • Adjust the circuit “ OFF>1>2>3>OFF”
  • Completed adjustment and installation

Ivan 自用模板

Factory Manufacturer Direct OEM ODM IK10 IP65 150W UFO LED Highbay Light High Brightness 130lm/W Meanwell Driver 5 Years Warranty For Warehouse, Workshop, Industrial Area etc.

Wide range of application scenarios

tubular solution 2

Farm

The tubular lights used in breeding plants need to be resistant to ammonia and washing

tubular solution 4

Workshop

The Lamps used in mechanical workshops are resistant to corrosion

tubular solution 5

Station

The light used in the station must be anti - vibration, fire proof and explosion - proof

tubular solution 6

Parking Lots

In the parking lots need to be used to prevent dust and vapor from entering the lamps

tubular solution 1

Food Plant

It is used in food factory to prevent corrosion and water-proof.

tubular solution 3

Outdoor

Waterproof rating up to IP67 for outdoor use can withstand the impact of rain

Easy to Connect & Install

K系列单端出线2

Single Input--Non-linkable:

Single Input with IP68 Inox stainless steel connector, There are 3 kinds of wire for different driver.

  • With 1M 3×1.0mm² cable for non-dimmable driver.
  • With 5×1.5mm² cables for dimmable 0-10V and DALI,
  • With 4×1.0/1.5mm² for Emergency kits and motion sensor.

Dual Input--Linkable:

The connectable mode can effectively improve installation efficiency and save costs

  • Dual Input with Pushing connector at both sides without cable out
  • 3 poles for non-dimmable,
  • 5 poles for dimmable 0-10V and DALI
  • 4 poles for emergency kits and motion sensor.
linkable2
WechatIMG573

Installation Type:

  1. with stainless steel mounting accessories included for wall and ceiling mounting,
  2. stainless steel cables For Hanging.

Specs

Technical Parameters


Model


OL-UFO340-150W


Power


150W


Luminous flux / Eff.


19500lm


130lm/W


Dimension


340*185mm


Input Voltage


AC220-240V/AC100-277V(for US market)


Power factor ( P.F. )


>0.95


LED source


210pcs SMD3030


Lamp body color


Transparent


Metal End Cap color


Black


Driver Brand


Meanwell


IP Grade


IP65


Beam angle


60/90/120°


Housing material


Aluminum Housing and Lens Cover or Glass Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


3-5 year



Technical Parameters


Model


OL-UFO280-100W


Power


100W


Luminous flux / Eff.


13000lm


130lm/W


Dimension


280*185mm


Input Voltage


AC220-240V/AC100-277V(for US market)


Power factor ( P.F. )


>0.95


LED source


168pcs SMD3030


Lamp body color


Transparent


Metal End Cap color


Black


Driver Brand


Meanwell


IP Grade


IP65


Beam angle


60/90/120°


Housing material


Aluminum Housing and Lens Cover or Glass Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


3-5 year



Technical Parameters


Model


OL-UFO400-200W


Power


200W


Luminous flux / Eff.


26000lm


130lm/W


Dimension


400*185mm


Input Voltage


AC220-240V/AC100-277V(for US market)


Power factor ( P.F. )


>0.95


LED source


315pcs SMD3030


Lamp body color


Transparent


Metal End Cap color


Black


Driver Brand


Meanwell


IP Grade


IP65


Beam angle


60/90/120°


Housing material


Aluminum Housing and Lens Cover or Glass Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


3-5 year



Technical Parameters


Model


OL-UFO400-240W


Power


240W


Luminous flux / Eff.


31200lm


130lm/W


Dimension


400*185mm


Input Voltage


AC220-240V/AC100-277V(for US market)


Power factor ( P.F. )


>0.95


LED source


315pcs SMD3030


Lamp body color


Transparent


Metal End Cap color


Black


Driver Brand


Meanwell


IP Grade


IP65


Beam angle


60/90/120°


Housing material


Aluminum Housing and Lens Cover or Glass Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


3-5 year



Benefits

In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on.

FAQ of Ivan 自用模板

answer

answer

Watch Videos to learn more about Ivan 自用模板

placeholder 19
Play Video

Title

We can achieve what you want, moreover, we can think of what you can't think of

Not only producing LED Lighting products, but also providing solutions for your specific needs.

LED Tubular light一级模拟图

Custom sizes available

We offer the option to produce a variety of panel light sizes to ensure you get the correct size to match the size required for your country's ceiling or project, and we will also make modifications to meet your branding needs To make the production process as simple and efficient as possible, the luminaire housings are offered in a variety of sizes. Our team of product engineers will develop solutions for any combination of products you offer

Power Supplies

We can provide power supply solutions with different functions according to project requirements, such as: no dimming, 1-10V dimming, DALI dimming, dimming and color temperature, all power supplies comply with safety certification and no strobe, high conversion efficiency, high PF solution, in line with environmental protection and energy efficiency standards requirements

Color temperature and color rendering index

Olam panel lights are made of Energy Star standard lamp beads, with a lamp bead life of more than 100,000 hours. The color temperature of the lamp beads can be selected from 2700-6500, with a color tolerance of less than 3, and a color rendering index of more than 80, 90 and 95.

Package/Logo/others

We can provide small batch of manual, label, packaging design and printing for your order, so that the products you purchase from Olam have your own brand image, and provide small batch of customization.
